Parameter

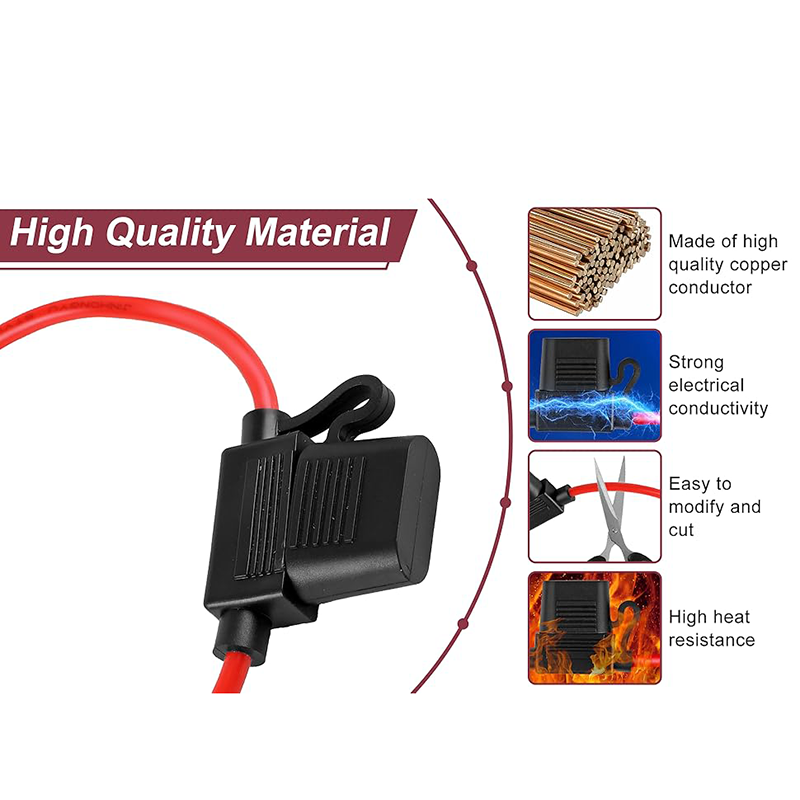

| Material | Copper(coated with tin), rubber |
| Operating Temperature | 30℃~170℃ |
| Fuse Holder Dimension | 41x35x15mm |
| Wire Length | Approx 6 inches; 10 gauge wire each side |
| Wire Range | 10 AWG |
| Amp Range Of Fuse Holder | 1 to 40 Amp |
| Fuse Holder Voltage Operating | 12V 24V 32V DC |
| For Fuse Series | Standard / Regular Blade Fuse(ATO) |

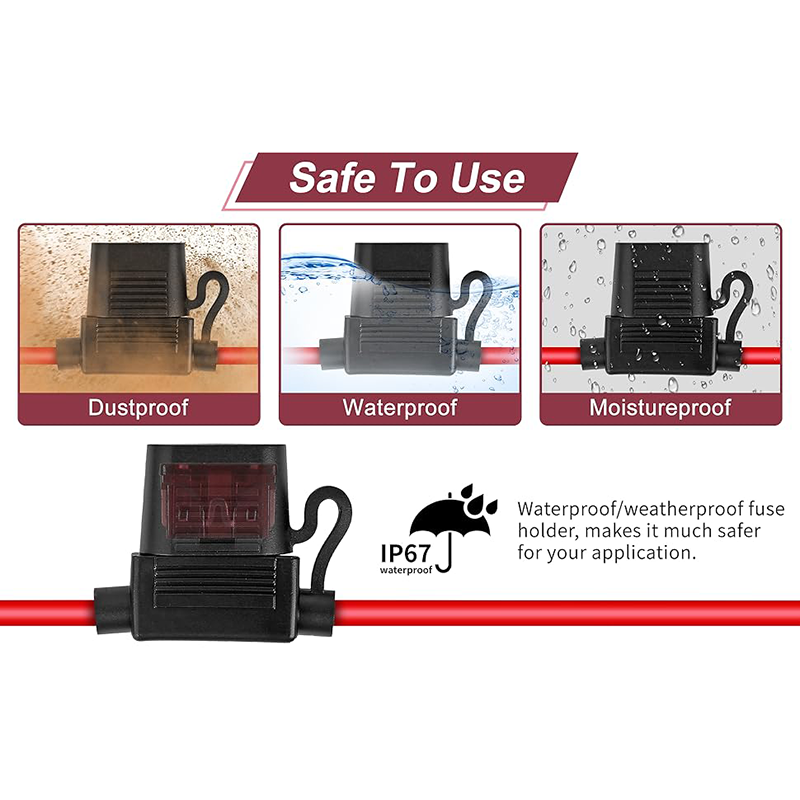

Waterproof Design
The rubber cap fits on tightly to protect any standard blade fuse inside.
NOT easy to fall off or let water in.
The fuse holder is not recommended to be used directly in water.
Attention
1. Fuse holders are designed with 10 gauge wire and they can support fuses rating 2A, 3A, 5A, 7.5A, 10A, 15A, 20A, 30A, 40A, ideal for car truck trailer atv boat marine.
2. It is important to select the correct Amp rating before you install or replace fuses.
