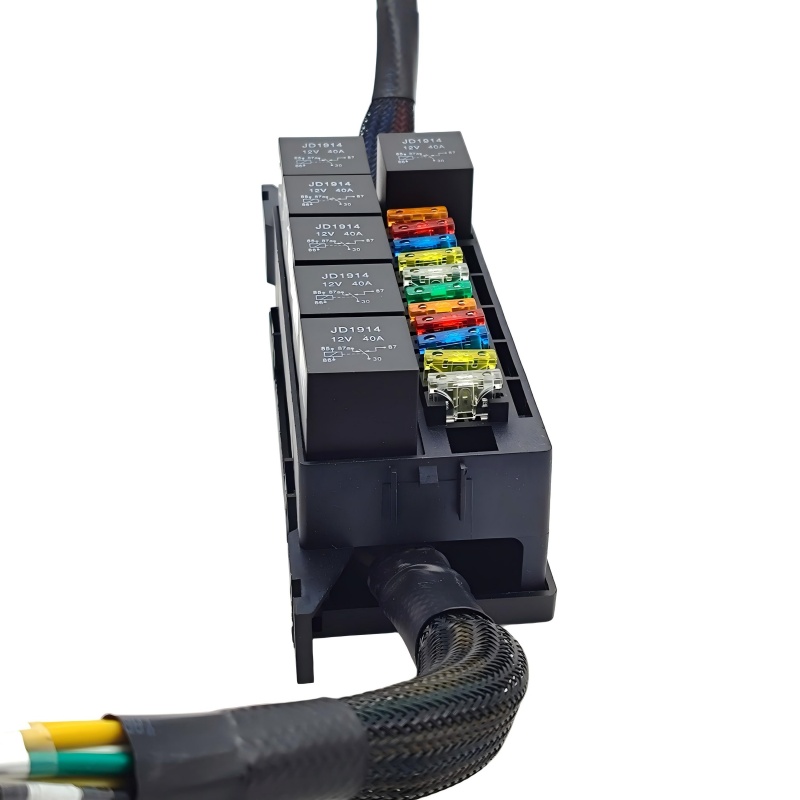

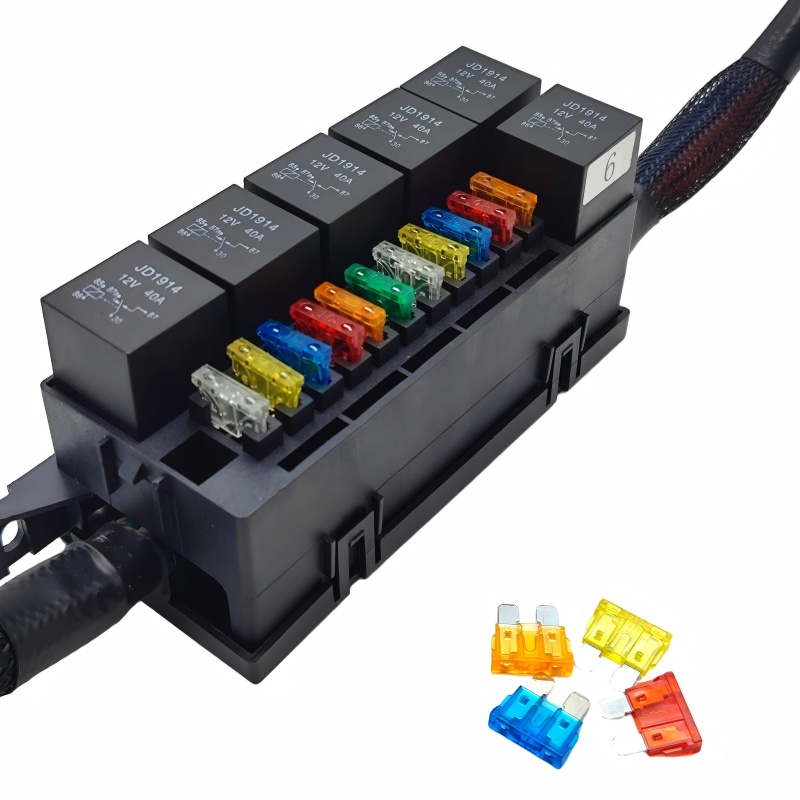

This 6-way JD1914 relay box integrates 6 JD1914 relays (12V/40A) and matching blade fuses into a single compact unit, ideal for automotive, marine, RV, and off-road electrical systems. It centralizes control and protection for 6 independent circuits (e.g., LED lights, audio systems, winches), with pre-wired connections and color-coded fuses to simplify setup—eliminating the need for separate relays, fuses, and messy wiring.
Constructed with a durable plastic housing and heat-resistant wiring (braided sheath for insulation), it withstands vibration, temperature fluctuations, and dust, while the pre-labeled relay slots ensure quick circuit identification.
Constructed with a durable plastic housing and heat-resistant wiring (braided sheath for insulation), it withstands vibration, temperature fluctuations, and dust, while the pre-labeled relay slots ensure quick circuit identification.
库存： 0
Inquire
Add to Basket
Parameter
| Core Components | 6× JD1914 Relays (12V/40A) + 11× Blade Fuses (matching load) |
| Circuit Capacity | 6 independent control circuits |
| Relay Rating | 12V DC / 40A (max per relay) |
| Fuse Compatibility | Standard blade fuses (rated for each circuit) |

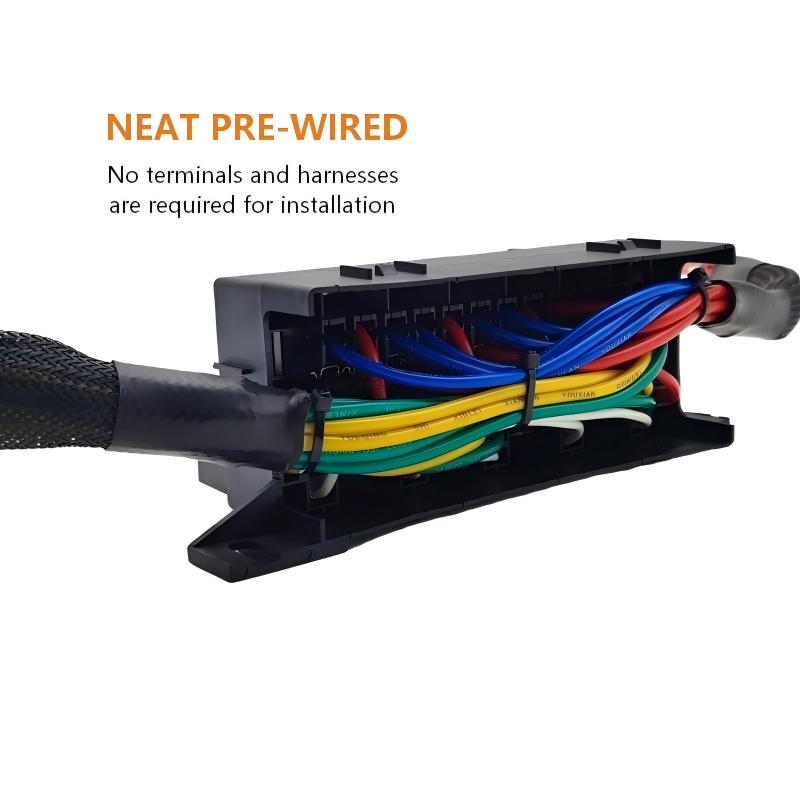

| Wiring | Pre-wired with braided heat-resistant sheath |
| Material | Durable plastic housing; copper-core wiring |
| Key Feature | LED indicator for blown-fuse alerts |

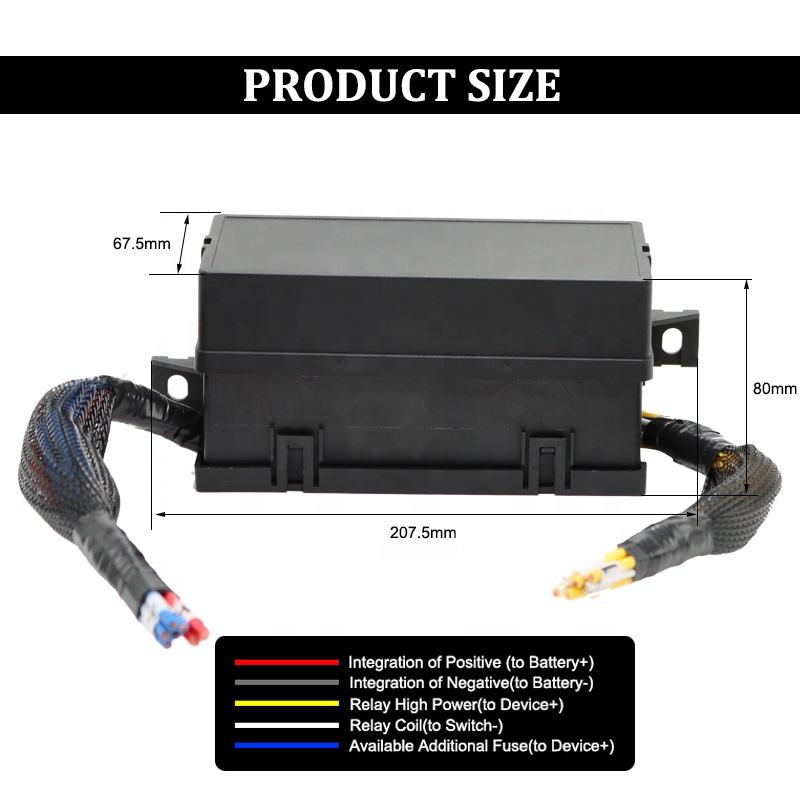

| Dimensions | 207.5mm × 67.4mm × 80mm |
| Operating Temp. | -20°C to +80°C |
| Protection Rating | Heat-resistant wiring + dust-resistant housing |
Why This Outperforms Competitors?
1.All-In-One Design – Replaces 6 relays + 6 fuses + wiring harness (cuts setup time by 50%).
2.High-Current Handling – 40A relays support heavy-duty accessories (critical for off-road/marine use).
3.Pre-Wired Convenience – Eliminates wiring errors (ideal for DIY users and professionals).
4.Rugged Reliability – Withstands harsh vehicle environments (vibration, heat, dust).
Key Advantages
6-Circuit Control – Integrates 6 relays + fuses in one hub (no separate components).
Pre-Wired & Color-Coded – Simplifies installation (no custom wiring/labeling).
High-Current Capacity – 40A per relay handles heavy-duty accessories (winches, lights).
Durable Build – Withstands vibration, heat, and dust (vehicle/marine-ready).
Quick Circuit Identification – Labeled relay slots + color fuses reduce troubleshooting time.
