Parameter
| Max Power | 720W (12V, 60A) |
| Input Voltage | 12V |
| Number Of Circuits | 6 |
| Max Current (Total) | 30A (included 20A fuses) |
| Operating Temperature | -40C ~ +105C |

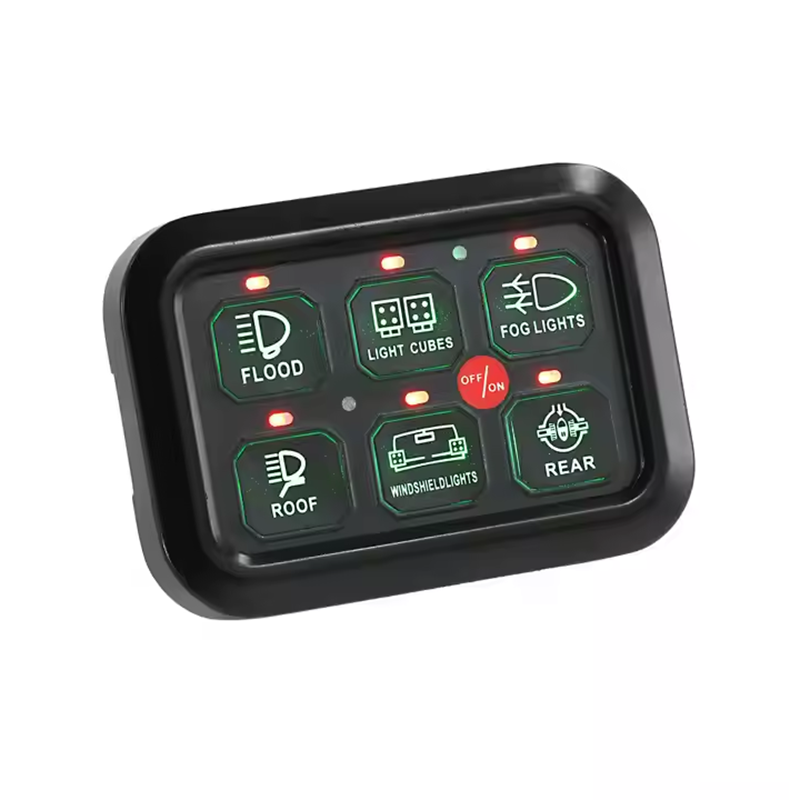

| Switch Type | Touch Pad on/off with back lit blue LEDs |
| Stickers | 45 Labelled, 5 Blank |
| Master Switch | Push Button Type, controls all other circuits on/off |
| Main Power Lead | 6 core 14AWG wire with M8 terminal |
| Switch Panel Extension Lead | 2.7m length, 8 core wire with easy threaded terminals |
| Switch Panel Mounting Options | Two Piece Pivoting Bracket + double sided tape |

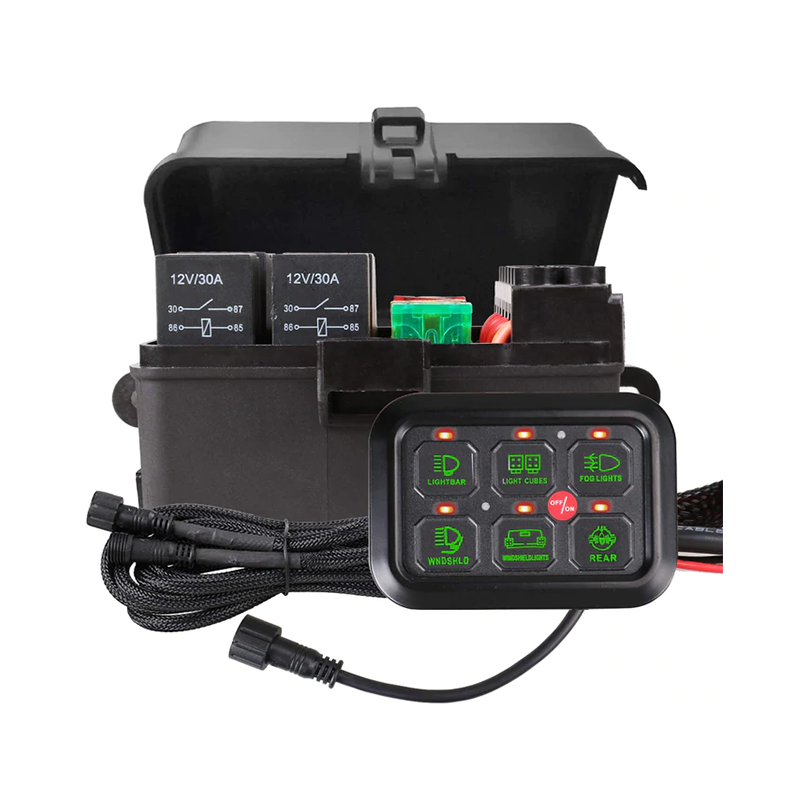

| Fuse/Relay Box Mounting Options | Integrated mounting holes and screws included |
| Switch Panel Dimensions | 95x65x10mm |

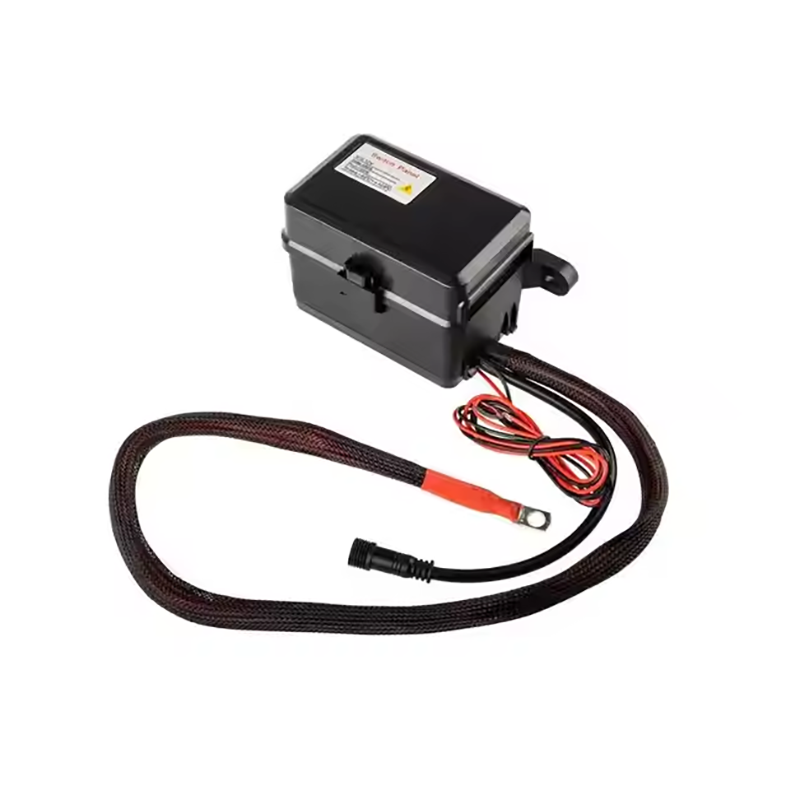

| Fuse/Relay Box Dimensions | 159x89x83mm |
Features
Control 6 LED lights & electrical accessories at the same time
Customize your personal switch panel with 50pcs self-adhesive labels
Good sealing performance of the switch panel buttons and dust and dirt resistance
Smaller size switch panel and control box save more space and can be installed in any location
Come with circuit breaker, over-voltage protection, over-current protection, temperature protection
Plug & play wiring harness make everything easy and save a lot of time

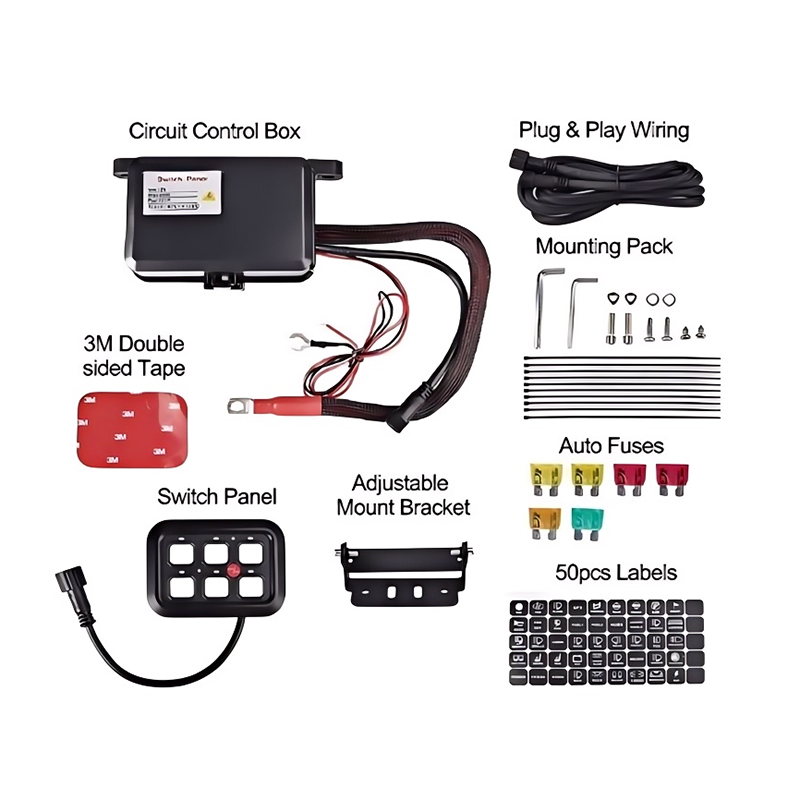

All in one package, no need to buy extra parts
Installation & Usage Guide
1. Prepare Power Source
Disconnect the battery. Route input wires (14AWG recommended) to the panel’s M8 terminals 5.
2. Mount the Panel
Clean surface; use included rotating bracket or 3M adhesive for secure mounting 5.
3. Connect Accessories
Attach devices (e.g., LED lights, USB ports) to output wires (max 10A per circuit).
4. Test Operation
Reconnect battery; touch pads to activate. Blue LEDs confirm power flow 7.
