Our 16mm Metal Push Button Switch is engineered with high-quality stainless steel materials, making it a vandal-resistant and durable solution for various industrial, automotive, and commercial applications. Featuring an excellent protection level of IP67 waterproof and IK10 impact resistance, it can effectively prevent water seepage and resist impact damage, ensuring stable operation even in harsh environments such as humid, dusty, or high-impact scenarios. The switch supports both momentary and self-lock operation modes to meet different functional requirements, with a clear and tactile pressing feedback for precise operation. It holds UL certification, complying with international safety standards, and has an electrical rating of 5A/250VAC, which can satisfy most of the user's power demand scenarios. With its compact 19mm mounting hole design, it is easy to install on various equipment panels, and the sturdy metal construction ensures a long service life, making it an ideal choice for equipment control, start/stop operations, and other control systems.
库存： 0
Inquire
Add to Basket
Parameter
| Mounting Hole Size | 16mm |
| Operation Mode | Momentary / Latching (Optional) |
| Voltage & Current Rating | 12V DC / 24V DC / 220V AC (Depends on contact type) Current: 2A / 5A / 10A (Options available) |
| Electrical Life | 50,000 cycles (typical) |
| Mechanical Life | 1,000,000 cycles (typical) |
| Housing Material | 304 Stainless Steel (Corrosion‑resistant, durable) |
| Button Material | Metal (stainless steel / aluminum alloy) with LED ring |
| LED Options | Red / Green / Blue / Yellow / White / RGB (Optional) LED Voltage: 12V DC / 24V DC |
| Contact Configuration | SPST / SPDT (Single Pole Single Throw / Single Pole Double Throw) |
| Protection Rating | IP68 (Front panel waterproof) |
| Termination Type | Screw terminals / Quick‑connect terminals (6.3mm) / Soldering pins |
Why This Outperforms Competitors?
1. Cost-Effective Durability – 304 stainless steel construction outlasts plastic switches by 3-5x, reducing long-term replacement costs.
2. Superior Weather Resistance – IP68 rating + corrosion-resistant materials perform reliably in saltwater (marine) and high-humidity environments, unlike standard switches.
3. Versatile Functionality – Dual momentary/latching options + multi-voltage compatibility eliminate the need for multiple switch models.
Key Advantages
16mm standard size, easy to install

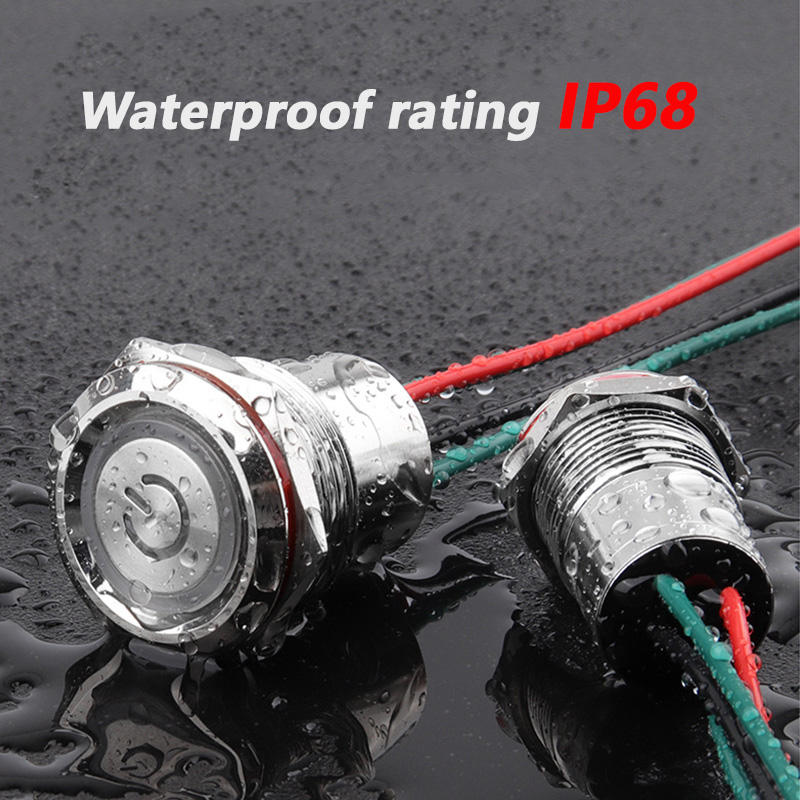

IP68 waterproof front, suitable for outdoor and marine applications
High‑quality stainless steel housing, wear‑resistant and anti‑corrosion

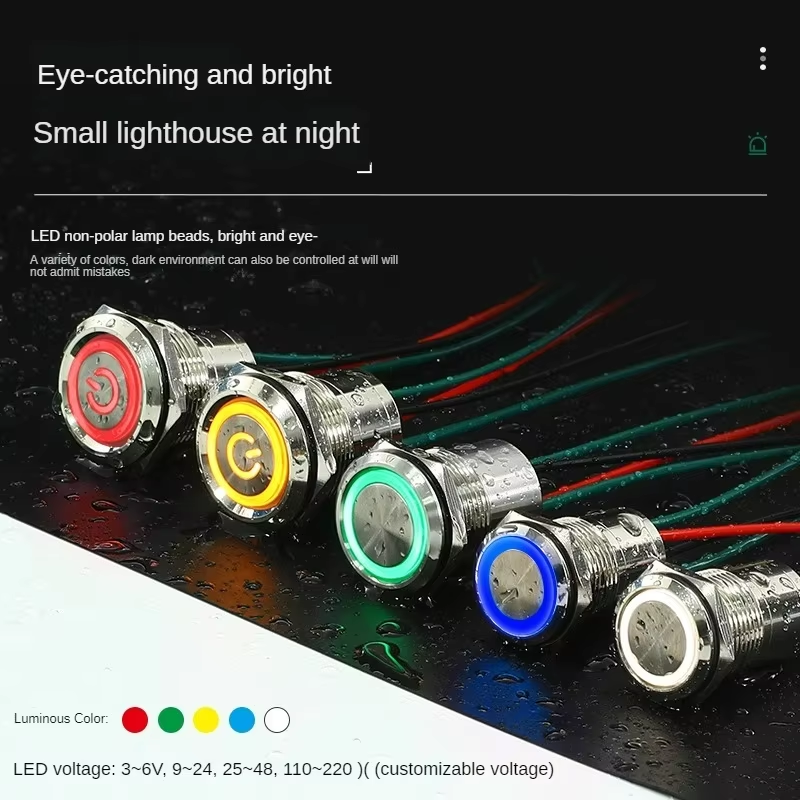

Bright LED ring for clear status indication
Multiple color and voltage options for LED
Momentary or latching function available
Reliable contact design for stable performance
